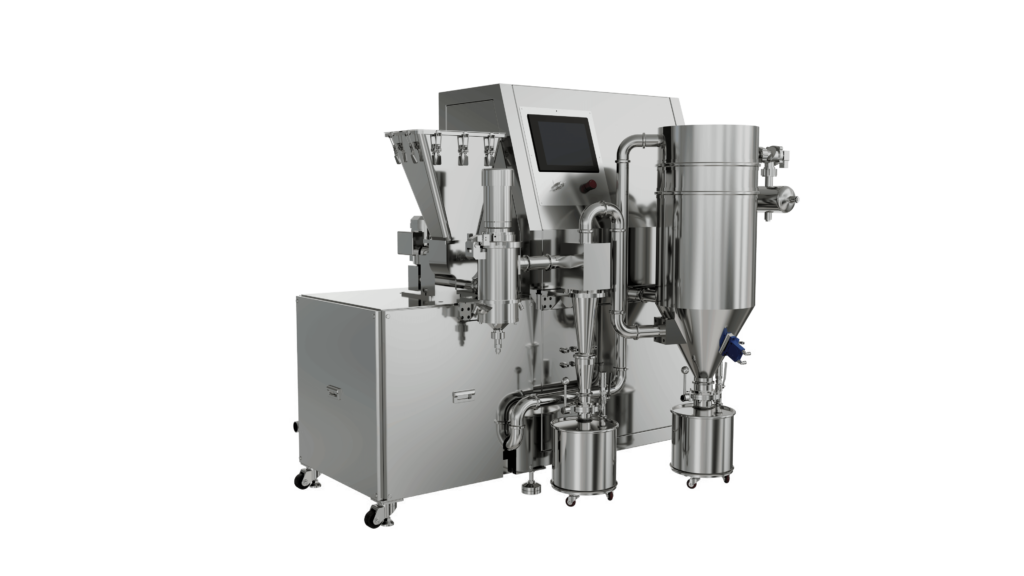

Air Jet Mill
MS10H
Key Features
• Utilized as laboratory research equipment
• Integrated system including raw material feeding/
jet mill/cyclone/bag filter/control panel
• Chamber size: 1153 × 1705 × 1630
• Minimum test quantity: –
• Hourly production capacity: –
• Integrated system
including raw material feeding/
jet mill/cyclone/bag filter/control panel
• Chamber size: 1153 × 1705 × 1630
• Minimum test quantity: –
• Hourly production capacity: –
Facility Details
Category
Air Jet Mill
Wheel Direction
Horizontal
Category
Unit
MS10H
Air Flow (for Milling)
㎥/h
60
Number of Nozzles
ea
3
Classifier Wheel Diameter
φ
50
Wheel Material (Selectable)
–
SUS/Zirconia
Classifier Rotor
ea
1
Classifier Power
kW
1.0
Wheel Rotation Speed (Maximum)
rpm
18,000
Size (W*L*H)
mm
1153*1705*1630
